Elite Enhanced Traction Fiberglass Reinforced Plastic Grating Panels
ELITE FRP Grating Product Details
| Item Code | Thickness | Bar Thickness (Top/Bottom) | Mesh Size
(mm) | Panel Size Available
(mm) | Weight (kg/㎡) |
| EG-20*20/40*40 | 14 | 6.5/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 | 10.5 |
| EG-20*20/40*40 | 22 | 6.5/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 1527*4047 | 14.8 |
| EG-20*20/40*40 | 25 | 6.5/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 1527*4047 | 16.8 |
| EG-20*20/40*40 | 30 | 6.8/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 1527*4047 | 18.3 |
| EG-20*20/40*40 | 38 | 7.0/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 1527*4047 | 23.2 |
| EG-20*20/40*40 | 40 | 7.0/5.0 | 20*20/40*40 | 1007*3007 1007*4007 1247*4047 1527*4047 | 23.7 |
Please send inquiries for more sizes*
Product advantages
1. High Strength: FRP gratings are known for their exceptional strength-to-weight ratio, making them strong and durable while remaining lightweight.
2. Corrosion Resistance: Unlike traditional metal gratings, FRP gratings are highly resistant to corrosion, making them suitable for harsh environments and corrosive chemicals.
3. Slip Resistance: FRP gratings can be designed with slip-resistant surfaces, providing enhanced safety in wet or slippery conditions.
4. Low Maintenance: FRP gratings require minimal maintenance, as they do not rust or corrode, reducing the need for frequent repairs or replacements.
5. Chemical Resistance: FRP gratings offer excellent resistance to a wide range of chemicals, acids, and alkalis, making them suitable for industries dealing with corrosive substances.
6. Electrical Insulation: FRP gratings are non-conductive, providing electrical insulation and reducing the risk of electric shocks or short circuits.
7. Fire Resistance: FRP gratings have inherent fire-retardant properties, making them a safe choice in environments where fire safety is crucial.
8. UV Resistance: FRP gratings are resistant to UV radiation, preventing color fading or degradation when exposed to sunlight.
9. Easy Installation: FRP gratings are lightweight and easy to handle, allowing for quick and hassle-free installation.
10. Versatility: FRP gratings are available in a variety of sizes, shapes, and colors, offering design flexibility for various applications and aesthetic requirements.
Overall, FRP grating panels offer a combination of strength, durability, corrosion resistance, safety, and design flexibility, making them a preferred choice for various industries and applications.
Product Tags:
|
|

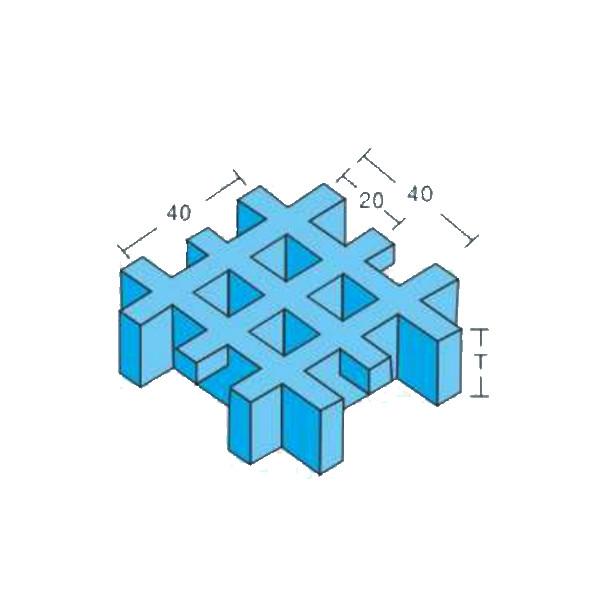

SMC FRP Grating Panels Images
|
